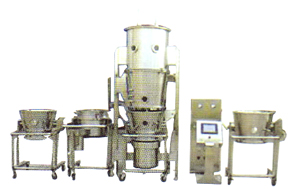

FLP FLUID-BED GRANULATOR/PELLETIZER/COATER

General applications

FLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray pelletizing-fluid coating-drying in one body. The machine combines various process operations. Particularly it is suitable for granulating, pelletizing and coating of various varieties in pharmaceutical industry, foodstuff industry and chemical industry, etc.

Features of equipment

Multi-function such as granulating, pelletizing, coating, drying in one machine.
Powder material granulating.
Powder material coating.
Powder material pelletizing.
Chinese medicine spray drying, granulating and coating.
Make 10-30 meshes big granule.
Film coating of Powder, granules and pellets, enteric release, slow and control release coating.
Taste masking, odor, moisture-proof, anti-oxidation, prevent water, heat insulation, coloration and separation coating
Powder, granule, pellet agglomerate material drying.

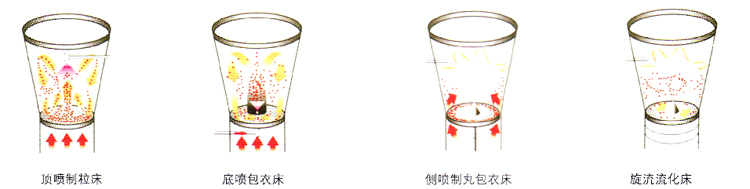

Top spray granulating Bottom spray coating Centrifugal spray pelleting/coating Turbojet granulating/coating

Technical parameter

Item Specification			10	15	20	30	45	60	90	120
Dia Of Container		mm	700	800	900	1000	1100	1200	1400	1500
Productive Capacity		kg/batch	2.5-10	3-15	5-20	7.5-30	10-45	15-60	20-90	30-120
Power of fan		kw	5.5	7.5	7.5	7.5	11	11	15	18.5
Steam	Pressure	Mpa	O.4 - 0.6
Steam	Consumption	kg/h	35	42	47	60	140	160	180	240
Compressed air	Pressure	Mpa	0.6
Compressed air	Consumption	m3/min	O.6	0.6	0.6	0.9	O.9	1.1	1.3	1.5
Noise		dB	No more than 75dB Separated of fan

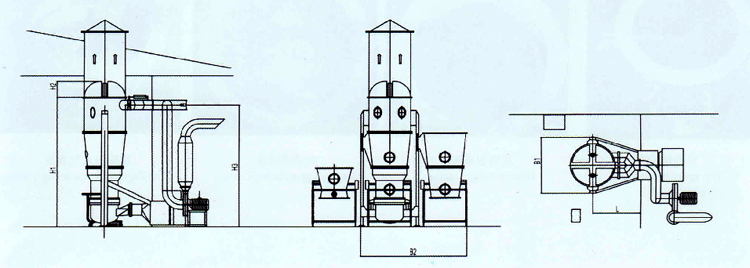

Installation size for reference		H1(mm)	2790	3350	3650	3720	3720	3850	3950	4190
		H2(mm)	340	490	540	590	640	690	740	790
		H3(mm)	2570	3130	3430	3500	3500	3630	3720	3975
		φ(mm)	250	250	250	280	280	280	280	315
		L(mm)	1250	1400	1450	1500	1550	1600	1650	1700
		B1(mm)	1160	1460	1560	1600	1760	1860	1960	2060
		B2(mm)	1860	2460	2660	2860	3060	3260	3460	3660

All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon
