GLP HIGH SPEED CENTRIFUGAL SPRAYING DRYER

General of applications

      Spray drying is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

Features of equipment

  • Quick drying speed, the surface area of material liquid through atomizing is increased greatly. In hot air stream, 95% to 98% of moisture can be evaporated at the moment. Particularly suitable to finish drying thermal sensitive material.
  • The product made by the machine has good uniformity, fluidity, solubility, high pure, and high quality.
  • The productive process is simple and the operation control is very convenient. For liquid containing 40-60% of damp(for special material, may be 90%),,it can be dried to powder product through drying one time. After dried, it is not necessary to crush and sieve. So it reduces productive procedure and raises the purity of product. For the size,bulk density and moisture of product can be adjusted within certain scope through changing operation condition. The control and management are very convenient.


Typical customers

  • Russia Ametis co., Ltd
  • Guangdong kangfulai health product co., Ltd
  • Henan Yiyuan biology technical co., Ltd
  • Guizhou Fuhua pharma co., Ltd
  • Beijing Yangyuan animal pharma co., Ltd
  • Liaonin Haohushi pharma co., Ltd
  • Zhejiang Lvzhijian pharma co., Ltd
  • Tianjin Tianshi biology developing co., Ltd


Technical parameters

                                   Model
Item

5 (Pilot Model)

25

50

100

150

200-300

Tep of inlet air

≤350 deg C

Tep of outler air

≤80 deg C - deg C

Evaporated capacity(kg/h)

5

25

50

100

150

200-300

Transmitted

Compressed air

Machine transmission

Rotating speed(rpm)

25000

22000

21500

18000

18000

15000

Did of atomizing disk(mm)

50

120

120

120

150

180-340

Heat source

Electricity

Electricity

Electricity+steam, oil fuel, gas

Electricity+steam

Electricity+steam, oil fuel, gas

By customer

Power of electric heater(kw)

9

45

60

81

99



Yield of dry power(%)

≥95

≥95

≥95

≥95

≥95

≥95

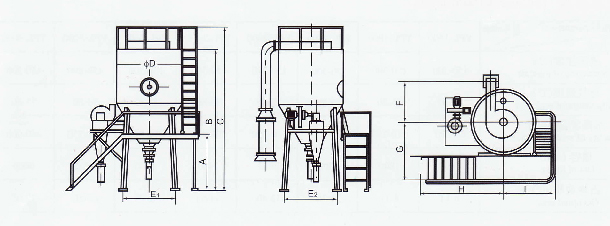

Installation Size
for reference

A(mm)

1000

1290

1730

2500

2800
Decided in

accordance with actual
condition

B(mm)

2100

3410

4245

5300

6000

C(mm)

2300

4260

4645

6000

6700

ØD(mm)

1060

1800

2133

2560

2860

E1(mm)

1050

1200

1640

2100

2180

E2(mm)

  1050

    1200

    1640

    2100

    2180

F(mm)

750

1000

1250

1750

1970

G(mm)

530

1700

1750

1930

2080

H(mm)

530

1300

1800

2600

3050

I(mm)

530

1550

1600

1780

1960

All datas are used for reference only According to the condition of material£¬our factory has the right change but not notice£¬pardon
