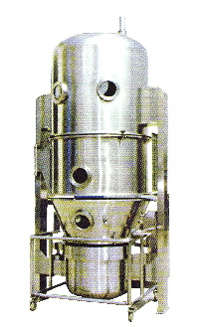

FG FLUID-BED DRYER

General applications

      The machine is suitable for drying powder or granule. In general, its speed is 10-20 times of common oven.

Feature of equipment

  • The mixing and drying process of the equipment can be finished in one equipment. The transfer of mass and heat is quick. Because of operation at negative pressure, there is no flying dust. The equipment has no dead corner and cleaning is completely and without cross pollution. Its heating source may use steam, or electric heater. It adopts antistatic filtering material. The lift of filtering bag adopts pneumatic operation. So the operation is sate. It meets the requirements of GMP.

Technical parameters



         Specification
Item

30

60

90

120

150

200

300

500

 800-1000

Volume of Container(L)

100

220

300

420

500

670

1000

1500

By client

Productive capacity(kg/batch)

30

60

90

120

150

200

300

500

 Steam

Pressure Mpa

0.4-0.6

Consumption kg/h

70

140

169

211

241

282

366

465

Compressed air



Pressure Mpa

0.6

Consumption kg/h

0.3

0.6

0.6

0.6

0.6

0.9

0.9

1.1

P0wer 0f fan(kw)

5.5

1 1

15

18.5

22

22

30

45

 Inlet air temperature(deg C)

normal temperature-12 deg C, automatism adjust

Yield of material(%)

>99

Content of final moisture(%)

can dry to 0.2

Noise(dB)

No more than 75 dB Separated of fan

Instollation size for reference

The same as FL model

All datas are used for reference only. According to the condition of material, our factory has the right change but not notice£¬pardon

Typical customers

  • Mexico SINBIOTIK, S.A DE C.V
  • Guangdong Hongshanhu Pharma co., Ltd
