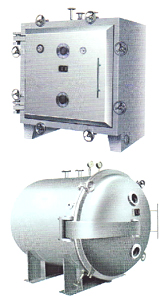

FZG,YZG VACUUM DRYER

General applications

Under the condition of vacuum, the boiling point of material solution will reduce. It will increase impetus for heat and mass exchange. Therefore for certain heat exchange amount, it can save heat exchange area of evaporator.
The heat source for evaporating operation may be low pressure steam or waster heat steam (If having special requirement, customer may choose water or oil to heat. Our factory can design specially for you).
Heat loss of evaporator may be reduced.
Suitable for drying thermal sensitive material that is easy to decompose, polymerize or denature.
Before drying, it can carry out disinfections. During the period of drying, any impurity can't be mixed into it.
It is static vacuum dryer, the form and structure of material to be dried can't be damaged.

Typical customers

Technical parameters

Specification Item	YZG-600	YZG-1000	YZG-1400	FZG-15
Internal size of drying chamber(mm)	Ø600×976	Ø1000×1527	Ø1400×2054	1500×1400×1220
Outer size of drying chamber(mm)	1135×810×1020	1693×1190×1500	2386×1675×1920	1513×1924×2060
Layer amount of tray frame	4	6	8	8
Distance between layers	81	102	102	122
size of tray	310×600 ×45	460×640×45	460×640×45	460×640×45
Qty of tray	4	12	32	32
pressure used in pipe of tray	≤0.784(8kg/cm2)	<0.784	≤0.784	≤0.784
T of tray frame to be used(deg C)	35-150	35-150	35-150	35-150
vacuum in unload in chamber(Mpa)	≤0.098(1kg/cm3)	≤0.098	<0.098	≤0.098
When use condensator, model and power of vacuum pump	2X-15A 2kw	2X-30A 3kw	2X-70A 5.5kw	2X-70A 7kw
When not use condensator, model and power of vacuum pump	SK-0.8 2.2kw	SK-3 5.5kw	SK-3 5.5kw	SK-3 5.5kw
weight of drying chamber(kg)	250	800	1400	2100
