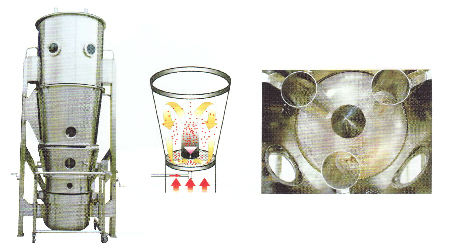

LDP FLUID-BED COATER



General applications

      Fluid-bed coater is a new style coating equipment that combined fluid-bed spraying technology and coating well. It is widely used for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granule, powder coating, etc.

Features of equipment

  • Coating of bottom spraying, material flow in order. We can get uniform and continuous film.
  • Taste masking odor, moistureproof, antioxidation, prevent water, heat insulation, coloration and separation coating.
  • Low productive cost, and the coating material is used perfectly.
  • Short travel distance of fog granule and without the problem of "spray drying".
  • The design of cylinder for accelerator or cone for decelerate can Coating of granule, big granule and pellets.
  • The high separate, without adhere.


Technical parameters

        Specification
Item

5

15

30

60

120

200

300-1000

capacity

Kg/batch

4-6

10-20

25-40

40-80

80-150

150-250

By client

Container Volume

L

15

50

100

220

360

650

power of fan

Kw

4

5.5

7.5

15

18.5

22

Compressed air

Pressure

MPa

0.6

consumption

M3/min

0.4

0.6

0.9

1.3

1.8

2.4

steam

Pressure

MPa

0.4-0.6

consumption

Kg/h

9

64

85

181

250

330

Installation size for reference

H1(mm)

2600

2850

3150

3250

3500

3800

H2(mm)



340

490

590

790

890

H3(mm)



2630

2930

3020

3280

3580

B1(mm)

1010

1160

1460

1660

2060

2260

B2(mm)

1560

1860

2460

2860

3660

4060

φ1(mm)

550

700

1000

1200

1600

1800

φ2(mm)

180

250

250

280

280

315

L(mm)

850

1550

1700

1800

2000

2100

All datas are used for reference only.According to the condition of material,our factory has the right change but not notice,pardon
