LBF TURBOJET FLUID-BED GRANULATOR COATER

General applications

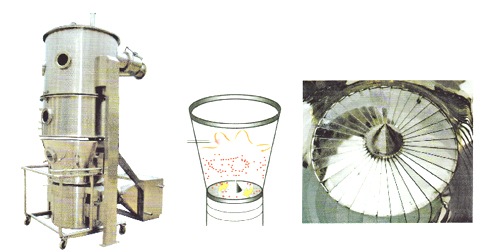

LBF Turbojet fluid-bed granulator coater has vane-shape bottom of hopper which has a certain lean, let the air flow pass through the rift then form circle-shape strong air flow, it makes material rotate as regular turbojet movement. Meanwhile the pneumatic nozzle installed under left wall spray binder or coating liquid into turbojet material, in this way granule or coating film can be obtained.
It is widely used in coating of powder, granule, pellet, enteric-releasing, slow and control releasing, and coating of taste masking, moistureproof antioxidation, prevent water, heat insulation, coloration and separation etc.

Features of equipment

Rotational flow drives air distributor in order to guarantee that material can move in order.
Fluidization of rotational flow, it overcomes channel flow and dead corner.
The prepared granule is porous and can solve quickly, with high sphericity coefficient, good surface luster, certain intensity and is not easy to break.
It can deal with low moisture-absorb and fluidity material to gain complete granule.

Technical parameters

Specification Item			0.5	5	10	15	30	60	90	120	200	300	500	300-1000
capacity		Kg/batch	0.5	5	10	15	30	60	90	120	200	300	500	By client
power of fan		Kw	2.2	4	5.5	7.5	11	15	18.5	18.5	22	30	45
Compressed air	Pressure	MPa	0.6
Compressed air	consumption	M3/min	0.45	0.6	0.6	0.6	0.6	0.9	1.1	1.3	1.8	2.4	3
steam	Pressure	MPa	0.4-0.6
steam	consumption	Kg/h	36	41	53	71	95	143	167	183	343	381	450
Installation size for reference		H1(mm)	2600	2600	2300	2450	2450	3050	3050	3050	3500	3700	4050
		H2(mm)			250	320	340	490	540	590	690	790	890
		H3(mm)			2100	2250	2250	2850	2850	2850	3300	3500	3850
		φ1(mm)	300	550	550	650	7010	1000	1100	1200	1400	1600	1800
		φ2(mm)	150	180	180	250	250	280	280	280	280	315	355
		B1(mm)			1010	1110	1160	1460	1560	1660	1860	2060	2260
		B2(mm)			1460	1760	1860	2460	2660	2860	3260	3660	4060
		L(mm)	800	850	1100	1100	1250	1530	1530	1650	1650	1750	1850

All datas are used for reference only. According to the condition of material,our factory has the right change but not notice,pardon
