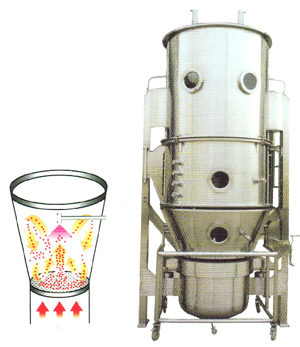

FL FLUID-BED GRANULATOR(ONE-STEP GRANULATOR)

General applications

      The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
     The machine is designed and manufactured in accordance with JB20014-2004 <<Fluid-bed Granulator In Medicine>>

Features of equipment

  • Mixing-granulating-drying in one-step.
  • Adopting double chamber filtering bags system, remove dust completely.
  • Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
  • Can choose 2 bar explosion-proof design
  • Designed, manufactured and laid out by GMP


Typical customers

  • Beijin Saike Pharma co., Ltd
  • Guangdong Mingzhu Pharma co., Ltd
  • Guangxi Banzhou Pharma co., Ltd
  • Jiangsu Jibeier Pharma co., Ltd
  • Shangdong Luxi animal Pharma co., Ltd
  • Shanghai medical university(Hongqi Pharma company)
  • Jiangxi Mingxin Group(Animal company)

Technical parameter


Item
Specification

3

5

15

30

45

60

90

120

150

200

300

500

800-1000

Container Volume

L

12

22

45

100

155

220

300

420

550

670

1000

1500

By client

Capacity

kg/batch

3

5

15

30

45

60

90

120

150

200

300

500

Steam

   Pressure

Mpa

0.4-0.6

   Consumption

kg/h

10

18

35

60

99

120

130

140

161

180

310

400

Power of fan

kw

2.2

3

4

5.5

7.5

11

15

18.5

22

22

30

45

power of electrical heater

kw

6

9



Noise

dB

No more than 75dB Separated of fan

Compressed air

Pressure

Mpa

0.6

   Consumption

m3/min

0.3

0.3

0.6

0.6

0.6

0.9

0.9

0.9

0.9

1.1

1.3

1.5

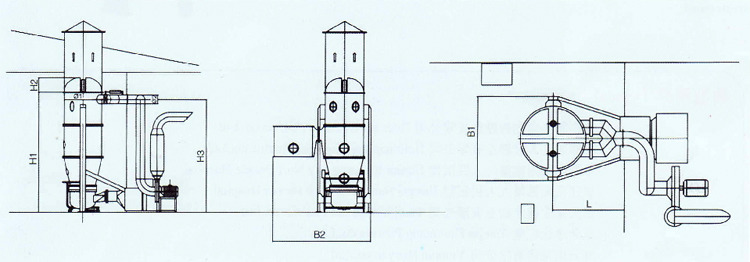

Installation size for reference

H1(mm)

2600

2600

2100

2250

2250

2850

2850

2850

2850

3300

3500

3850

H2(mm)





250

320

420

490

540

590

640

690

790

890

H3(mm)





1900

2050

2050

2600

2600

2600

2600

3000

3280

3630

B1(mm)

1550

1650

1010

1160

1320

1460

1560

1660

1760

1860

2060

2260

B2(mm)





1500

1800

2060

2460

3660

2800

3060

3260

3660

4060

φ1(mm)

300

400

550

700

860

1000

1100

1200

1300

1400

1600

1800

φ2(mm)

150

180

180

180

250

280

280

280

280

280

315

355

L(mm)

850

1000

1100

1250

1530

1530

1530

1650

1650

1650

1750

1850

All datas are used for reference only. According to the condition of material, our factory has the right change but not notice,pardon.
