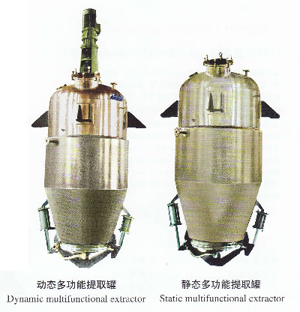

TQ-A MULTIFUNCTIONAL EXTRACTOR

General of applications:

(TQ-A Straight Awl Model)

The equipment is suitable to extract aromatic oil and recovery of organic solvent on the base of natural pressure or low pressure, water decoction, warm soak, thermal circumfluence, coercive cycle infiltration. It has the characterics of high efficiency and operational convenience, It is used for evaporation oil extraction of pharmaceutics, food and chemical industry etc.

Technical Parameters

Motel Item		TQ-A-0.5	TQ-A-1.0	TQ-A-2.0	TQ-A-3.0	TQ-A-6.0
Total volume(L)		520	1200	2500	3500	6400
Inner designed pressure (MPa)		0.09
Jacket designed pressure(MPa)		0.3
Inner allowable vacuum limit(MPa)		60
Compressing air pressure(MPa)		0.6-0.7
Dia.for reed hole(mm)		300	300	400	400	500
Heating area(m2)		2.4	3.1	4.2	5.5	7.1
Condensation area(m2)		3	5	5	5	8
Cooling area(m2)		1	1	1	1	1.5
Filting area(m2)		0.25	0.25	0.25	0.25	0.5
Weight(static)(kg)		1000	1500	1800	2100	3500
Outer size(mm)		Ø1300×2130	Ø1500×2650	Ø1700×3180	Ø1900×3800	Ø2600×4500
dynmic	stirring power (kw)		3	4	5.5	7.5
dynmic	Stirring power (r.p.m)	63
Energy consumption(kg/h)		200	245	325	425	580
