PGL-B SPRAYING DRYER GRANULATOR(ONE-STEP GRANULATOR)

General applications

    PGL machine is suitable for Chinese traditional medicine granule, such as capsule and no or low sugar and tablet or coating of granule.

Features of equipment

  • Multi-fluid atomizer. Particularly it is suitable for material that contains component of amylase and has strong viscosity or theral sensitive product.
  • The structure of spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system has been improved greatly. It can appear the features of spraying drying deeply.
  • Designed and manufactured laid out by GMP
  • Can realize continuous spraying process of immersed paste,
  • Simple and reliable operation
  • Improve spraying and drying efficiency Compared with FL, the fluid-bed is more constant and the adjusted air amount is more reasonable. The drying degree is improved and the "dead bed" is overcomed.



Typical customers

  • Guangxi Banzhou Pharma co., Ltd
  • Heilongjiang TianhongPharma co. Ltd
  • Hunan Yueyang city No.1 People Hospital
  • Jiangxi Nanchang No.9 People Hospital
  • Tianjin Anjielun Pharma co., Ltd
  • Tianjin Darentang Pharma co., Ltd
  • Yunnan Nanyao co., Ltd

Technical parameter



                                           Item
Specification

3

5

10

20

30

40

80

120

150

Container Volume

L

26

50

100

220

300

420

670

1000

1500

Liquid speed

Kg/h

2-4

4-6

6-15

15-25

20-40

30-60

60-100

20-160

100-200

specific gravity of liquid

kg/L

≤1.3

Steam

Pressure

Mpa

0.4-0.6

Consumption

kg/h

25

50

120

160

240

280

300

380

465

Compressed air

Pressure

Mpa

0.6

Consumption

m3/min

0.4

0.6

0.9

0.9

1.1

1.1

1.3

1.6

1.8

Auxiliary blower fan

kw

0.55

0.75

0.75

1.1

1.5

1.5

1.5

2.2

2.2

Power

kw

3

4

7.5

11

18.5

18.5

22

30

37

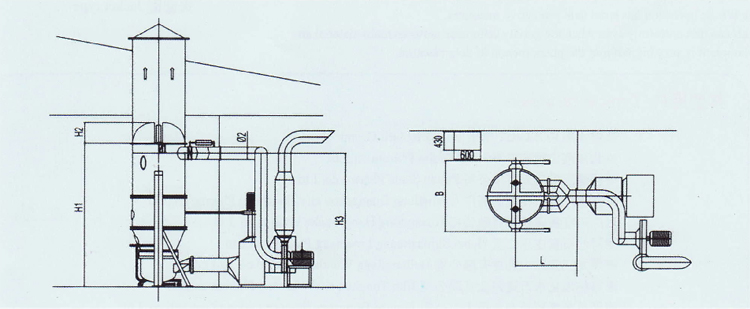

Installation size
for reference

H1(mm)

1900

2360

2680

3150

3630

3630

4120

5050

5400

H2(mm)

190

260

340

490

540

590

690

890

990

H3(mm)

1680

2140

2460

2930

3410

3410

3900

4830

5180

φ1(mm)

400

550

700

1000

1100

1200

1400

1800

2000

φ2(mm)

150

180

180

250

280

280

315

355

355

B(mm)

860

1010

1160

1460

1560

1660

1860

2260

2460

L(mm)

1050

1050

1250

1400

1450

1500

1600

1800

2000

All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon
