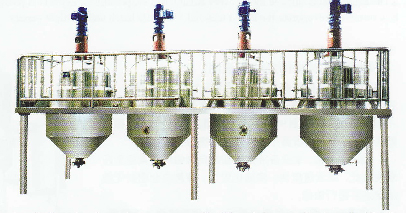

The equipment is suitable for ethanol sediment in Chinese medicine, oral liquid, food, heath protective products and chemical industry Alcohol sediment is developed from traditional technology ,it is mainly used to freeze Chinese medicine liquid decocted after evaporating or for operation of hot ethanol sediment after Chinese medicine being extracted.

Structure and Feature
The equipment is made up of a round barrel with a layed ellipse head cone bottom ,a propeller-like mixing speed-reducer inside, the tempreture of liquid from solid in low tempreture frozen state so as to improve the purity and brightness of extracted herbs, with adoption of bottom steam blowing hole, laxing the sediments and drifting ball and soft tube taking out the upper liquid for complete separation.

Model Item	JC-300	JC-500	JC-1000	JC-1500	JC-2000	JC-3000	JC-6000
volume(m3)	0.3	0.5	1.0	1.5	2.0	3.0	6.0
Heat exchange Area(m2)	1.8	3.0	4.5	6.5	7.5	8.5	13
working temperature(deg C)	- 15 comman temperature
max.operating pressure of heat exchange(MPa)	0.25	0.25	0.25	0.25	0.25	0.25	0.25
operating pressure of working medium(Mpa)	0.01	0.01	0.01	0.01	0.01	0.01	0.01
Diatermancy coefficient	150-200
Stirring power(KW)	0.75	0.75	1.5	2.2	2.2	3	5
Stirring speed(r/min)	250	250	160	125	125	125	125
weight(kg)	512	1250	1480	1750	1880	2200	4000
D(mm)	500	800	1000	1200	1300	1400	1600
D1(mm)	700	900	1100	1300	1400	1500	1700
D2(mm)	850	1050	1300	1550	1650	1750	2000
H(mm)	900	900	1200	1200	1300	1400	2700
