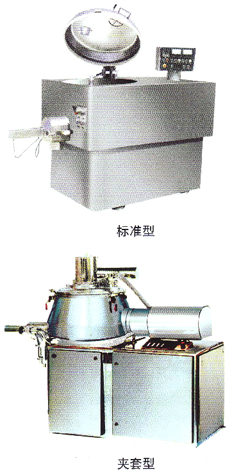

GHL HIGH SPEED MIXING GRANULATOR

General applications

      GHL high speed mixing granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry, etc.

Features of equipment

  • The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
  • The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
  • Short granulating time, high efficiency and energy saving
  • The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material to tablet pressing procedure.
  • Compared with traditional process, it can reduce 25% of binder and shorten drying time too.
  • Each batch needs 2 minutes to dry mixing and 1-4 minutes to granulating. Compared with traditional process, its efficiency can raise 4-5 times.
  • Whole operation has strict safe protective measures.

It can mix uniformly even when the gravity difference between main material and excipient is very big, without the phenomenon of delamination.

Typical customers

  • Russia Kolorit Group
  • Beijing Yajin Pharma co., Ltd
  • Fujian Sanai Pharma co., Ltd
  • Guangdong Guangzhou city Huacheng Pharma co., Ltd
  • Guangdong Hongshanhu Pharma co., Ltd
  • Hebei Shjjiazhuang Lerentang Pharma co., Ltd
  • Heilongjiang Wandashan Mild co., Ltd
  • Jilin Tonghua city Wantong Pharma co., Ltd
  • Jiangsu Dongshen Science Qidong Gaitianli co., Ltd

Technical parameter



                     Model

Specification

10 (Pilot Model)

50

150

200

250

300

400

600

Container Volume

L

10

50

150

200

250

300

400

600

Capacity

kg/batch

3

15

50

60

80

100

135

200

Mixing speed

r.p.m

300/600

200/400

180/270

180/270

180/270

140/220

106/155

80/120

Mixing power

kw

1.2/2.2

4/5.5

6.5/8

9/11

9/11

13/16

18.5/22

22/30

Cutting speed

r.p.m

1500/3000

Cutting power

kw

0.85/1.1

1.3/1.8

2.4/3

4.5/5.5

4.5/5.5

4.5/5.5

6.5/8

9/11

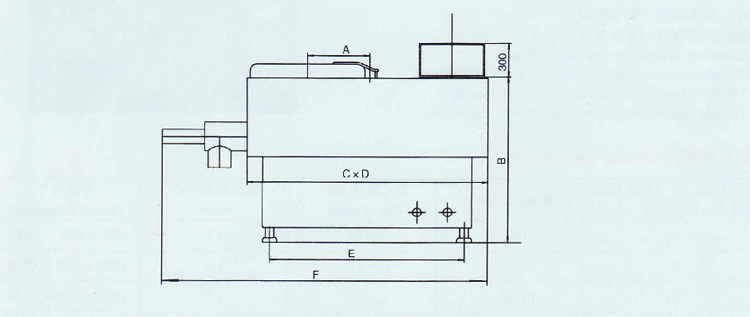

Installation size
for reference

B(mm)

750

950

1000

1100

1100

1150

1150

1250

C×D(mm)

1000×650

1250×800

1350×800

1650×850

1650×850

1700×900

1860×1050

2000×1050

E(mm)

745

970

1050

1450

1450

1500

1650

1800

F(mm)

1350

1650

1750

2050

2050

2200

2350

2400

All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon
