NB FILM EVAPORATOR

Application:

     The device is suitable for the concentration of thin solution in such lines as pharmacy, food, and chemicals as well as in light industry. It is characterized by big productive capacity, high efficiency, and shorter heating time of material and so on.

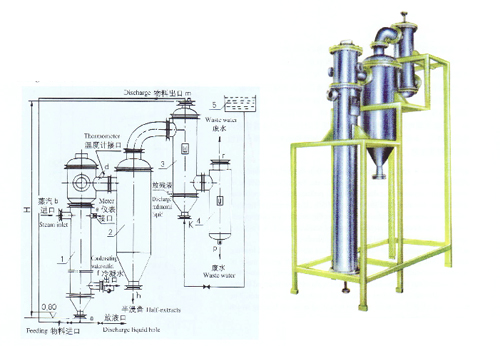

It is made up of evaporator, air liquid separator, connecting pipe and preheater

Technical parameters

       Model
Item

2.2m2

5.5m2

8m2

12m2

16m2

20m2

30m2

Heating Area(m2)

2.2

5.5

8

12

16

20

30

Preheating Area(m2)

1

2.17

4

6

7.5

10

15

Steam Pressure(Mpa)

0.35

0.35

0.35

0.35

0.35

0.35

0.35

Vacuum Degree(Mpa≤)

0.08

Steam consumption(kg/h≥)

140

350

550

850

1000

1400

2100

Medium



Vessel Category

class 1

Overall Size(1×w×h)m

1.95
×0.8
×3.3

2.2
×0.83
×3.4

2.7
×0.92
×4.35

2.9
×0.95
×4.95

3.36
×0.97
×5.89

2.7
×1.3
×5.1

3.8
×1.6
×6.1

Net Weight(kg)

280

500

700

980

1200

2300

2800
