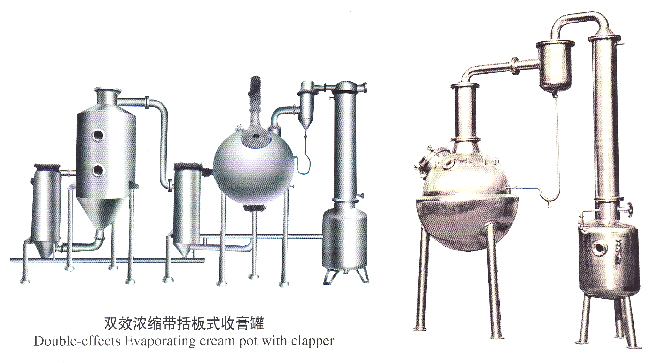

The sphericity evaporator is mainly consist of evaporator body, gas-liquid separator, cooler and liquid receiving tank. It is use to evaporate, distill the liquid materal and recovery organic ontermediary in pharmaceutical, food, chemical and so on. Because of reducing pressure evaporating, the evaporating time is short. And it doesn’t destroy the effective content of heat sensitive material.

Technical Parameters

Model Item	QN-100	QN-250	QN-500	QN-700	QN-1000	QN-1500	QN-2000	QN-3000
Volume(L)	100L	250L	500L	700L	1000L	1500L	2000L	3000L
steam Pressure(MPa)	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15
Evaporating capacity (kg/h)	45	80	110	150	200	280	410	527
Heating Area(m2)	0.8	1.0	1.5	2.7	3.1	4.0	5.0	6.2
Condensing Area(m2)	2.0	3.0	4.0	5.0	8.0	12.5	18.0	20.0
Diameter of check hole(mm)	150	250	400	400	400	400	400	400
Energy consumption(kg/h)	50	90	120	160	195	300	450	580
Vacuum degree(MPa)	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015
Weight(kg)	250	415	625	760	950	1700	1900	2300
Outer size(mm)	1420 ×700 ×2400	1800 ×1000 ×2300	2100 ×1200 ×2500	2200 ×1400 ×2800	2000 ×1500 ×2700	3000 ×1600 ×3600	3600 ×1900 ×4000	4000 ×1900 ×4900
